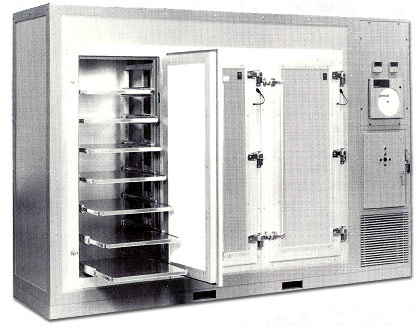

Prepreg Storage System

















For Storage of Multilayer Bonding Sheets and Contact Film, Featuring a Fully Regenerative Non-Dusting Dehumidifier.

Insulated Enclosure

• Exterior: textured aluminum finish laminated to a 1/8” tempered substratum.
• Interior: white aluminum laminated to a 1/8” tempered substratum.
• Insulation; 2-3/4” foam core.
• Structural: ¼” aluminum angle top, bottom and corners, heliarc welded, ground smooth and painted, creating a structurally sound and easily transportable storage chamber.

Chamber Doors

• Jambs and doors are composed of a heavy duty anodized aluminum extrusion allowing for the accommodation of a self-regulating temperature controlled, anti-sweat heaters.
• Hardware; two latches top and bottom with bar release to prevent distortion and leakage at the door gasket.
• Gaskets; double extruded neoprene gaskets to insure the integrity of the temperature and humidity conditions.
• Door option; multi-light full vision windows. See price list.

Shelves

• 7 each 20-3/4” x 30” deep stainless steel shelves behind each door.
• 24” extension ball bearing drawer slides with a push button lock in the out position for ease of loading and unloading.
• Recommended spacing 8” on center. See price list for additional shelves.
• Other sizes and capacity available on request.

Specifications

• De-humidification:
  A fully regenerative, non-dusting desiccant dehumidifier.

• Condensing Unit
  The refrigeration system can be water-cooled or air-cooled. No defrost cycle is required. The condensing unit operates continually, cooling the chamber temperature to a precise degree on a demand basis.

• Temperature Range (Drybulb)
  +35ºF to +70ºF

• Relative Humidity Range
  Below 10º RH maintained throughout the dry bulb range.

• Shelving
  304 stainless steel shelving used in all chambers.

• Controller
  Two each, interchangeable temperature and humidity digital controllers.

• Recorder
  2-pen temperature and humidity. 10” circular chart recording.

• Power Requirement
  208, 230/ 1Ø / 60 HZ / 50A

Applications

• These facilities are designed for the storage of prepreg sheets, rolls and contact film. Chambers are available in one, two and three door models.

Dimensional View
